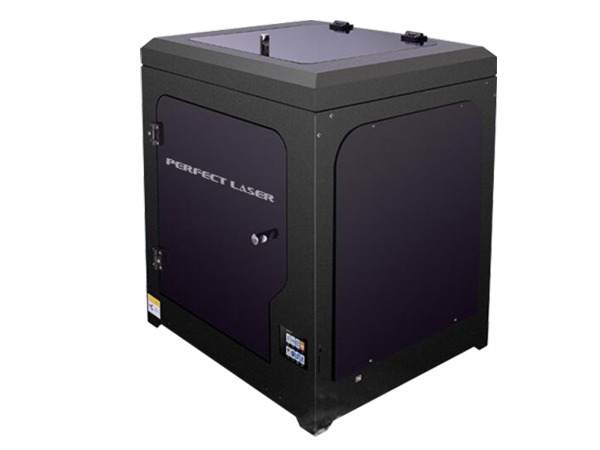

HPEK SERIESE 3D PRINTER:

Fully Enclosed High Resolution 3D Printer for Plastic and Gypsum.

Recently we produced a new mini desktop 3d printer (model HPEK-40 and HPEK-100), this industrial 3d printer with fully enclosed design, and the appearance is simple and beautiful. The mini desktop 3d printer is very easy to operate, and the printing accuracy is high, the medium print area is of high resolution. The mini desktop 3d printer can meet many requirements of three dimensional printing needs, and this section of the industrial 3d printer once launched, it received wide acclaim by new and old customers at home and abroad.

Application industry:This kind of mini desktop 3d printer is widely applied in animation hand, household goods, medical industry, cultural relics protection, architectural design, manufacturing, food industry

Application materials:This kind of mini desktop 3d printer is widely applied in soft plastic, plastic, gypsum, ceramic embryo, resin.

Features

1. High-intensity printing: The high resolution mini desktop 3d printer can be printed continuously for more than 500 hours.

2. We adopt Taiwan's silver Z-axis screw for mini desktop 3d printer to ensure high-performance while ensuring high accuracy.

3. With the function of continuing printing: when the power is off, you can a key to boot and continue to print, so that the three dimensional printing machine can reduced the failure rate.

4. False alarm function: the mini 3d printer will automatically begins the alarm when the supply is running out, and automatically stop the operation to avoid idling without manual monitoring, which saved the manpower.

5. This three dimensional printing machine with the function of continued printing when the power is off, when you need to pause, you can pause after the suspension from the print to avoid re-hit.

6. With automatic leveling function: the platform automatically reset and leveling, the location is more accurate.

7. This three dimensional printing machine is equipped with air filter function, three layers of removable filter paper, fully filtering each particle produced by 3D print, which avoided environmental pollution.

8. Double convection cooling system speeds up the condensation rate, and improves the print accuracy.

9. Fully enclosed thermostat body, thicken the door ensured that the three dimensional printing process temperature is constant and printing effect is better.

10.The structure of mini 3d printer is the metal frame, one piece of steel sheet metal structure, and the strength of its structure is as 3 times as the aluminum alloy and as 15 times as the acrylic.

11.High-precision alloy nozzle: the mini 3d printer can print persistently without head blocking.

12. Full color LCD touch screen, Chinese and English operating system, the interface of operation is easier.

Technical Specification:

Machine parameters	Model	HTEK-100
	Machine frame	Integral steel sheet metal structure
	Body characteristics	Fully enclosed thermostat body
	Z-axis screw	Bold double z axis
	Platform temperature	0-120°C
	Platform material	Aluminum plate + removable glass  platform
	Nozzle diameter	0.4mm
	Nozzle temperature	0-260℃
	Voltage power	110V/220V, 50-60HZ.300w
	Number of nozzles	Tow nozzles, Two-color mixed printing
	Air filtration	Built in air filter system
	Cooling system	Dual convection cooling system
	Touch screen control	3.5 inch full color touch Chinese and English control screen
Print parameter	Printing technology	FDM
	Forming size	800*800*800mm
	Forming accuracy	0.02-0.4mm
	Positioning accuracy	XY axis:0.004mm, Z axis:0.0025mm
	Print speed	80-300mm/s
	printing method	USB connection print, SD card / U disk offline print
Consumables parameter	Print consumables	PLA, ABS, Compound PLA,
	Specifications	1.75mm one kilogram / reel supplies
	color	Dozens of colors are optional
	File format	STL, OBJ, AMF
	Operation system	Windows, Mac, XP
