CNC V GROOVING MACHINE-VKB SERIES |

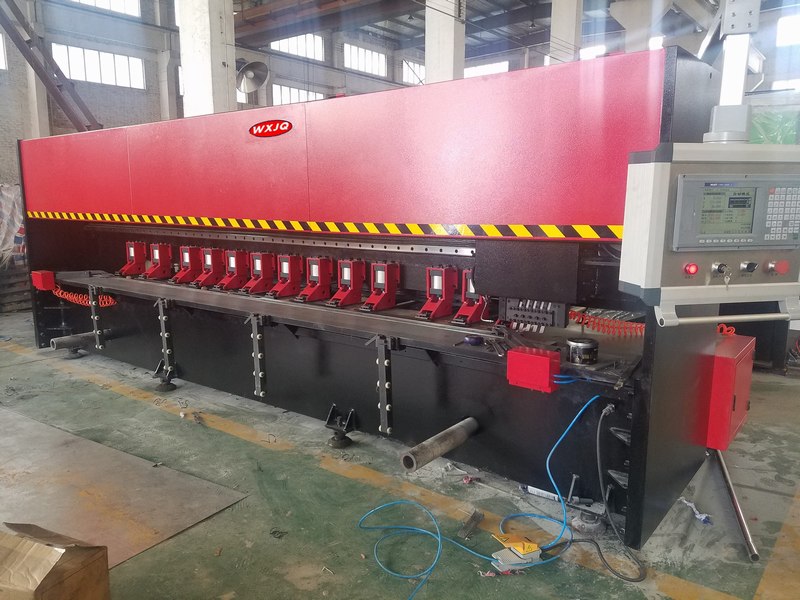

CNC V GROOVING MACHINE-VKB SERIES:
DESCRIPTION:
THIS MACHINE IS USED TO OPEN V SLOTS ON METAL SHEET(MILD STEEL PLATE OR STAINLESS STEEL PLATES ETC.).AFTER MAKING V SLOTS ON METAL SHEET,THEN YOU DO BENDING TO GET SHARP BENDING ANGLE AND GOOD LOOKING OF BENDING.
PARAMETERS
ITEM
CNC V GROOVING MACHINE:VKB SERIES
MAX. WORKABLE WIDTH OF PLATE
1250mm
1250mm
1250mm
MAX. WORKABLE LENGTH OF PLATE
4000mm
5000mm
6000mm
MAX. WORKABLE THICKNESS OF PLATE
0.40-4.00mm
0.40-4.00mm
0.40-4.00mm
MIN.GAP BETWEEN SLOTS
8mm
8mm
8mm
X-AXIS WORKING SPEED
70m/min
70m/min
70m/min
X-AXIS RETURNING SPEED
85m/min
85m/min
85m/min
Y-AXIS MOVING SPEED
20m/min
20m/min
20m/min
Y.Z-AXIS REPEAT ACCURACY
±0.01mm
±0.01mm
±0.01mm
POWER OF X AXIS MOTOR
4.5KW
4.5KW
4.5KW
POWER OF Y.Z AXIS MOTOR
1KW
1KW
1KW
OVERALL SIZES （LxWxH）
5740x2350x2110mm
6740x2350x2110mm
7740x2350x2110mm
MACHINE WEIGHT
10.5T
12T
18T

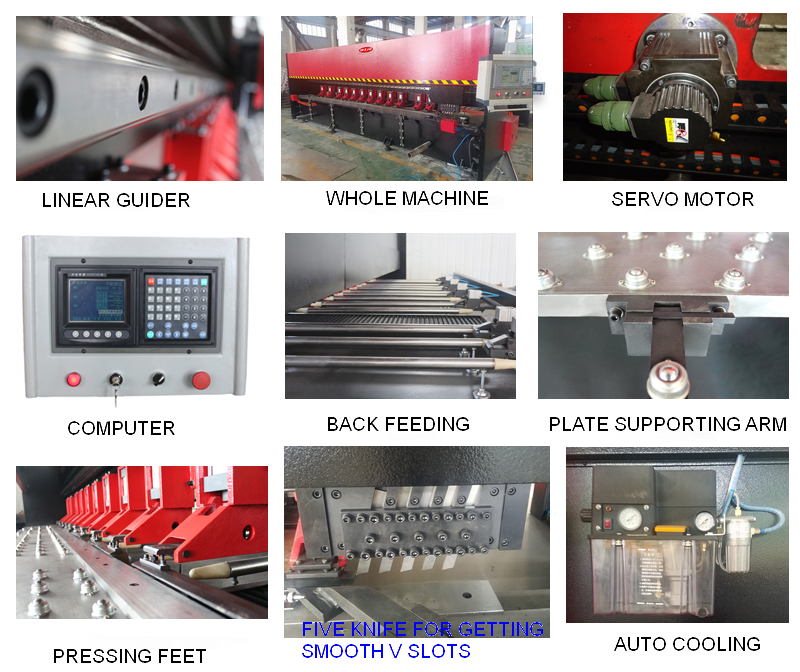

PARTS LISTS
NO.
PARTS
BRAND
1
CNC CONTROLLER
TAIWAN HINSTUN
2
PNEUMATIC CONTROL
TAIWAN
3
SERVO MOTOR
TAIWAN,DELTA
4
LIMIT SWITCH
JAPAN,OMRON
5
MAIN MOTOR
TAIWAN,DELTA
6
ELECTRIC PARTS
FRANCE,SCHNEIDER
7
KNIFE
SOUTH KOREA
8
LINEAR GUIDER AND BALL SCREW
TAIWAN,HINWS
9
CABLE
GERMAN
10
LUBRICATING SYSTEM
BERCHI
