Light pole straightening machine |
Light pole straightening machine|pole straightening machine:JZ-63Ton
OPERATION EASY
WIDE OPERATION RANGE
STABLE DESIGN
|
|
When we make lighting poles, there are lots of working procedures. There is two steps, lighting pole welding procedure and Galvans. The lighting poles will be heated and then the poles will be bent like a banana. So we need to use to use this lighting pole straightening machine to make the light pole straight again. |
|

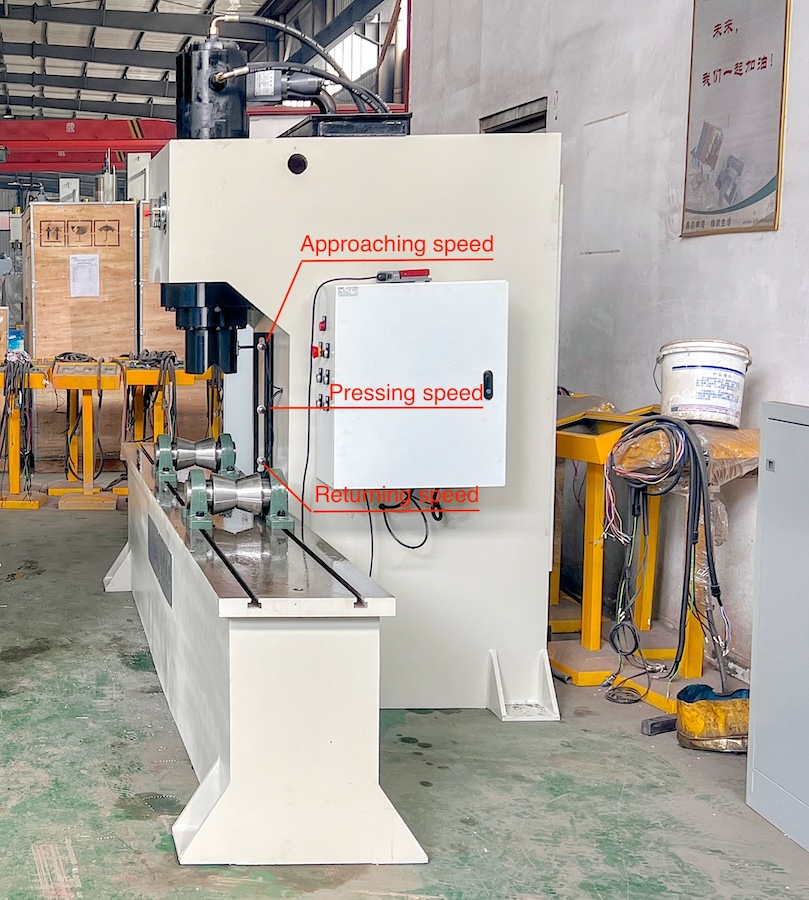

There are three different working speeds: 1.Approaching speed 2.Pressing Speed 3.Working speed they can improve working efficiency. The working table with T slots and T bolts which make the supporting rollers can be moved stepless on working table.
|
 |
|
TECHNICAL PARAMETER |
|||
Name |
Unit |
Value |
|
Max. Pole diameter |
Mm |
400 |
|
Min. Pole diameter |
Mm |
60 |
|
|
Nominal working pressure |
KN |
630 |
|
|
Length of worktable |
Mm |
3000 |
|
|
Distance between Housing |
Mm |
840 |
|
|
Throat Depth |
Mm |
420 |
|
|
Stroke |
Mm |
400 |
|
|
Max. Open Height |
Mm |
510 |
|
|
Main Motor （for Pump） |
Rotate Speed |
r/min |
1440 |
|
Power |
KW |
7.5 |
|
|
Overall Dimensions |
Length |
mm |
3000 |
|
Width |
mm |
1260 |
|
|
Height |
mm |
2230 |
|
|
Weight |
Kg |
2800 |
|
