LIGHT POLE GRINDING MACHINE:LPG-350/14000
|
APPLICATIONS AND FUNCTION GRINDING THE BLACK LIGHTING POLE GRINDING THE GALV. LIGHTING POLE IT CAN WORK WITH MAX DIAMETER 350MM AND LENGTH 14M |

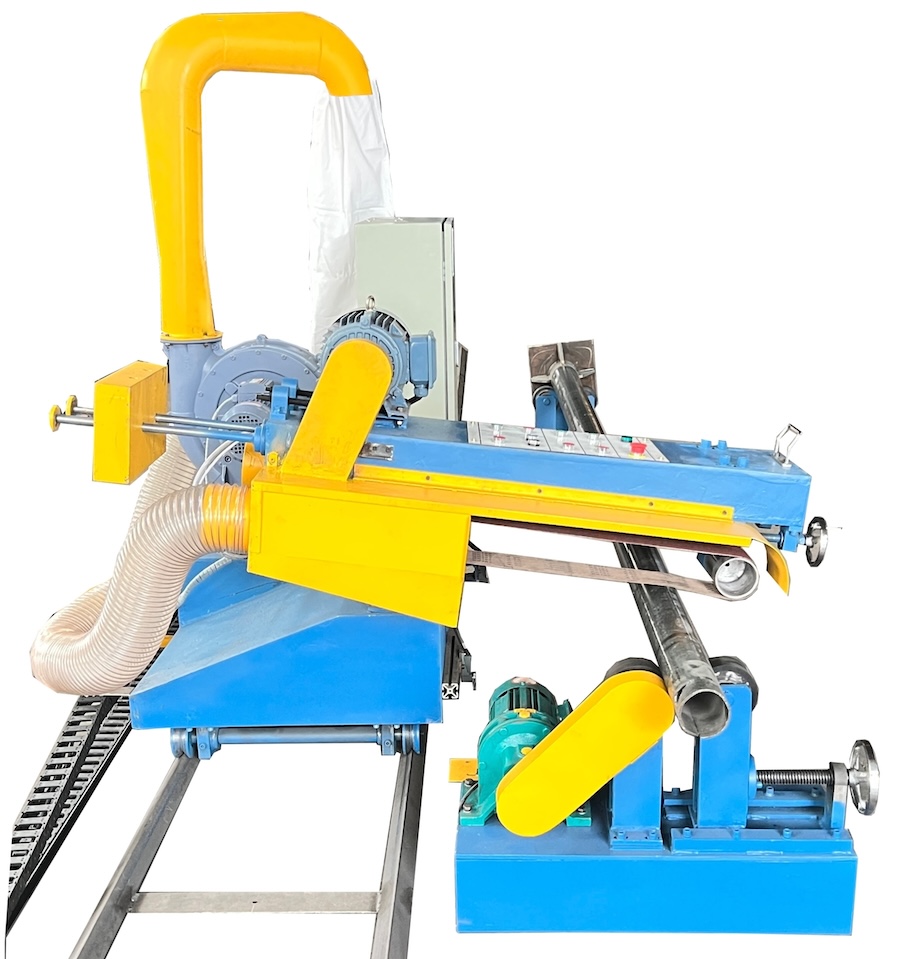

MAIN STRUCTURE DOLLY WITH SAND BELT LIGHTING POLE FRONT SUPPORTER WITH ROTATION MOTOR LIGHTING POLE BACK SIDE SUPPORTER |
|
|
LIGHTING POLE GRINDING MACHINE
This machine is automatic running under pipe self rotating and grinding machine moving. On grinding machine ,there installed flap wheel, flap wheel grind on the surface of pipe, suitable for galvanized and stainless pipe surface. The speed is quick and simple operation. It is with high efficiency, saving personnel and power. It is the good machine for grinding pipe surface.
|
|
OPERATION PANEL: 1.DOLLY MOVE LEFT,RIGHT ETC. 2.DUST COLLECTION BUTTON 3.SAND BELT STARAT 4.LIGHTING POLE ROTATION 5.POWER INDICATOR AND EMERGENCY STOP |
 |
|
TECHNICAL PARAMETER |
|||
|
Name |
Unit |
Value |
|
|
Max. Grinding Pole diameter Max. Grinding length Grinding speed |
Mm |
350 |
|
|
Mm |
14000 |
||
|
Mm/Min |
1000 |
||
|
Pole rotate speed |
Turn/Min |
5-10 |
|
|
Sand Belt Motor |
Kw |
1.5 |
|
|
Moving motor |
Kw |
0.55 |
|
|
Rotating motor |
Kw |
0.55 |
|
|
Dust suction motor |
Kw |
3 |
|
|
Voltage |
|
380V/50Hz |
|
|
Overall Dimensions |
Length |
mm |
15000 |
|
Width |
mm |
2000 |
|
|
Height |
mm |
850 |
|
|
Weight |
Kg |
2000 |
|
