CNC PLASMA CUTTING MACHINE |
CNC PLASMA CUTTING MACHINE:
 |
|
INDUCTION: Gantry CNC cutting machine, thebed is designed for wide body and low center of gravity gantry structure, steel structure parts all eliminate the internal stress processing, long-term guarantee factory precision; Equipped with imported servo motor, drive and reducer; Drive gear and rack to achieve no clearance elastic meshing transmission; Implement bilateral symmetric drive mode; Longitudinal rail is made of high strength rail precision grinding; The machine runs smoothly, cutting torch positioning and reset accurately, in line with the national JB/T5102-99 standard; Cutting precision and quality to meet the national JB/T10045.3-1999 standard of A and I grade; Selected domestic and foreign front-line mainstream CNC system (host), complete functions, simple and convenient operation. ADVANTAGE: ▲ According to customer needs, you can choose the host system of Beijing Starfeng,HYPERTHEM, Victor, Shanghai Jiaotong University and other brands ▲ According to customer requirements can be selected with different power imported plasma cutting power supply ▲ The track length and track spacing can be customized according to customer requirements ▲ The number of cutting torches can be increased according to customer requirements ▲ According to customer needs can increase the case of dusting line and other functions ▲ Ensure that the machine has high performance and low price. |
|
|

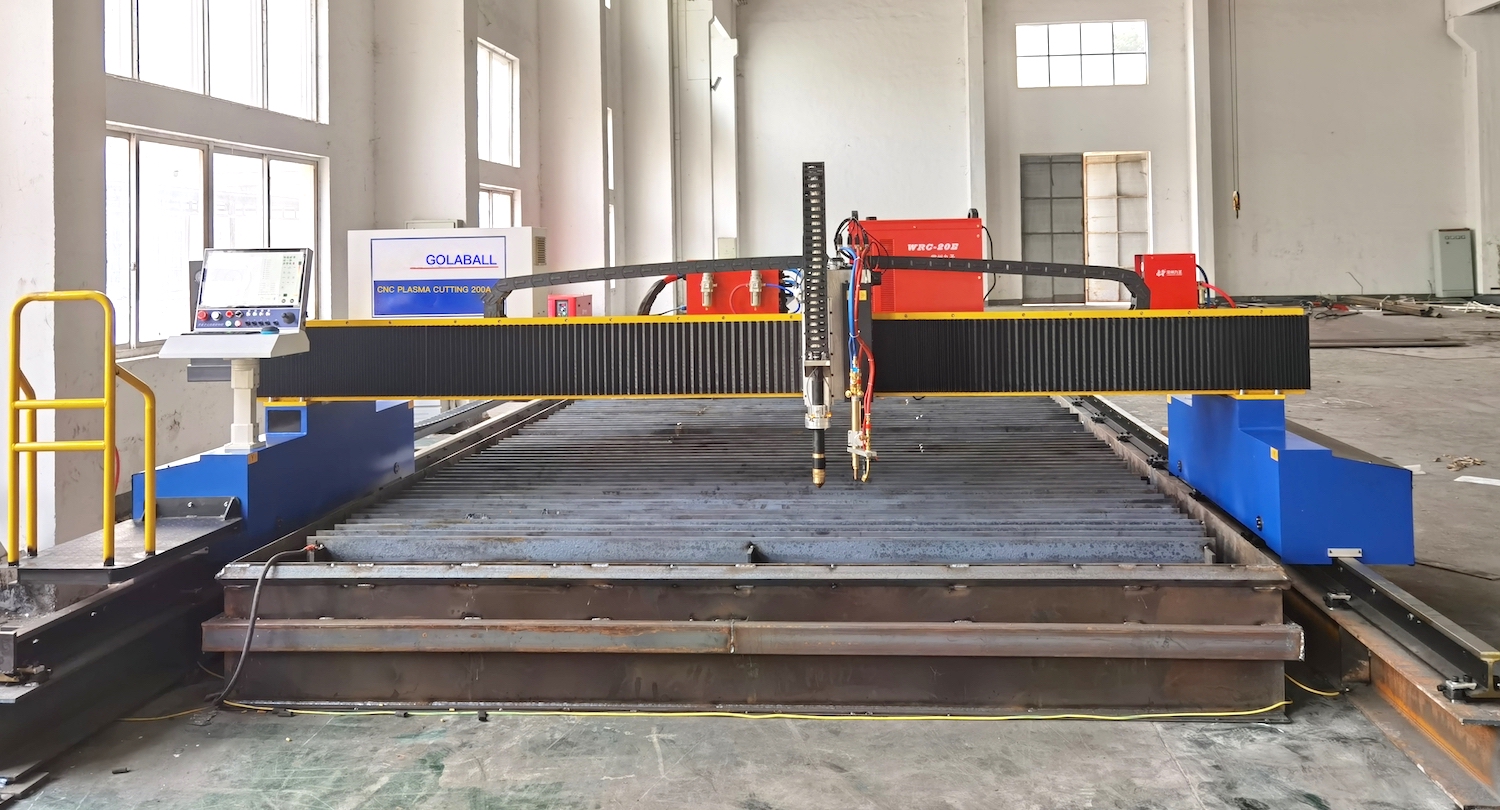

CNC PLASMA CUTTING MACHINE:2200X12000MM WITH 200AMP HUAYUAN PLASMA POWER SOURCE |
|
CNC PLASMA CUTTING MACHINE:2200X8000MM WITH 100AMP JIUSHENG PLASMA POWER SOURCE |
 |
 |
CNC PLASMA CUTTING MACHINE:4200X22000MM WITH 300AMP HYPERTHEM PLASMA POWER SOURCE |
|
Specifications |
QW-3000ZX |
QW-3500ZX |
QW-4000ZX |
|
The input power |
AC 220V±10％ 50-60Hz 3.0KW， |
||
|
Cutting way |
Plasma cutting (with plasma power supply)/flame cutting/plasma cutting + flame cutting |
||
|
CNC span mm |
3000(CUSTOMERIZED) |
3500(CUSTOMERIZED) |
4000(CUSTOMERIZED) |
|
The length of the numerical control mm |
8000(CUSTOMERIZED) |
8000(CUSTOMERIZED) |
8000(CUSTOMERIZED) |
|
Customized information |
The transverse and longitudinal length of the gantry can be increased or shortened according to customer's requirement |
||
|
Effective cutting rangemm |
2200*6500 |
2700*6500 |
3200*6500 |
|
Lifting height of cutting torch mm |
200 |
||
|
Cutting torch and quantity |
Plasma 1 set, flame 1 set |
||
|
Number of CNC moving bodies |
2 PCS as standard (can be increased or decreased according to user's request) |
||
|
The thickness of the cutting mm |
Depending on the plasma power, the flame is 6-250 mm |
||
|
Travel speed |
0—10000mm／min |
||
|
Cutting speed |
20—8000mm／min |
||
|
Drive |
Double side drive (rack and pinion drive) |
||
|
The motor type |
Standard with Panasonic servo motor + reducer |
||
|
Numerical control system |
Beijing star peak, display 10 inch industrial control large screen |
||
|
Other configuration |
Lifting pipeline drag chain, 1 set of tools |
||
|
Gas supply requirements |
The pressure of acetylene or propane is not more than 0.1MPa (flame cutting method is required) |
||
|
Requirements for oxygen supply |
The oxygen pressure is not more than 0.8Mpa (flame cutting mode is required) |
||
|
Raise the type |
Flame capacitance adjustment: optional/plasma arc voltage adjustment: optional |
||
|
A mobile body can only support one type of elevation (for example, if plasma arc voltage elevation is optional, flame capacitance elevation cannot be added) |
|||
|
Nesting software |
Standard: FastCAM standard version/or a set of Starfeng software |
||
|
Machine Tool Bare Package Dimensions |
3800*1500*1400 |
4300*1500*1400 |
4800*1500*1400 |
|
Guide rail foundation, cutting rack |
The manufacturer provides the drawing, the user makes by himself |
The manufacturer provides the drawing, the user makes by himself |
The manufacturer provides the drawing, the user makes by himself |
