High mast pole welding machine |

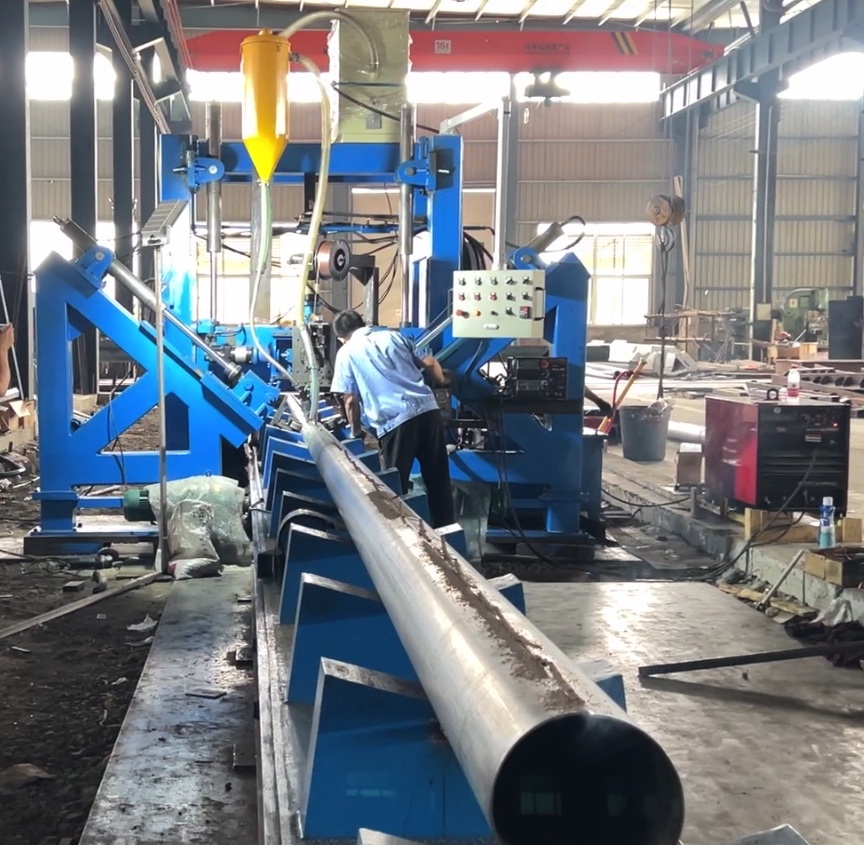

HIGH MAST POLE WELDING MACHINE-POWER POLE WELDING MACHINE
|
APPLICATIONS >LIGHTING POLE CLOSE & WELD >HIGH MAST POLE CLOSE & WELDING >CONIC POLE WELDING >OCTAGONAL POLE WELDING >SINGLE SHELL POLE WELDING >DOUBLE SHELLS POLE WELDING |
MAIN STRUCTURE 1.LONG WORKING TABLE FOR MOVING POLES 2.MAIN GANTRY WELDING UNIT 3.WHOLE WELDING SYSTEM 4.WELDING FLUX RECYCLE SYSTEM 5.HYDRAULIC SYSTEM 6.POLE ROTATION SYSTEM |
MAIN PARTS >WELDING POWER SOURCE:LINCOLN (OPTIONAL) >SERVO MOTOR:PANASONIC >MAIN ELECTRIC PARTS:SCHNEIDER >MAIN MOTOR:SIMENS >HYDRAULIC VALVE:BOSCH >BEARING:NSK |
|
|
CONIC LIGHTING POLE WELDING PROCESS WELDING DIRECTION:BIG TO SMALL END SINGLE SHELL AND SINGLE WELDING SEAM |
|
OCTAGONAL POLE WELDING PROCESS WELDING DIRECTION:BIG TO SMALL END
SINGLE SHELL AND SINGLE WELDING SEAM |
|
 |
HIGH MAST POLE WELDING PROCESS WELDING DIRECTION:BIG TO SMALL END DOUBLE SHELLS AND DOUBLE WELDING SEAM FISRT WELDING SEAM FINISH,ROTATE THE HIGH MAST POLE,WELD THE SECOND WELDING SEAM. |
|
HIGH MAST POLE AND LIGHTING POLES FINISH WELDING SAMPLES |
 |
| TECHNICAL PARAMETERS | |||
| NAME | UNIT | HPW-850/12000 | HPW-1600/12000 |
| MAX.WELDING DIAMETER OF POLE | MM | 850 | 1600 |
| MIN.WELDING DIAMETER OF POLE | MM | 75 | 300 |
| MAX.WELDING LENGTH | M | 12 (CUSTOMERIZED) | 12(CUSTOMERIZED) |
| WELDING MACHINE POWER SOURCE 1000A HUAYAN OR LINCOLN | |||
| WELDING WIRE DIAMETER | MM | 1.2-2.5 | 1.6-2.5 |
| WELDING THICKNESS | MM | 3-10 | 5-20 |
| POLE CLAMPING FEET | SET | 3 | 3 |
| POWER OF MOTOR OF HYDRAULIC PUMP | KW | 4+4 | 4+4 |
| VERTICAL CYLINDER STROKE | MM | 650 | 1400 |
| VERTICAL CYLINDER FORCE | TON | 5 | 5 |
| SIDE CYLINDER FORCE | TON | 5X2 | 5X2 |
| WELDING DIRECTION FROM BIG END TO SMALL END | |||
| MAX. WELDING SPEED | M/MIN | 2.5 | 2 |
| WEIGHT | TON | 12 | 16 |
| OVERAL SIZE | M | 32X3.5X4.5 | 35X4.6X5.1 |
