SPIRAL LIGHT POLE FORMING MACHINE:

DESCRIPTION:                                                                                                                                                                         This machine is special designed for kaing sping lines or straight lines on the surface of conic light poles.

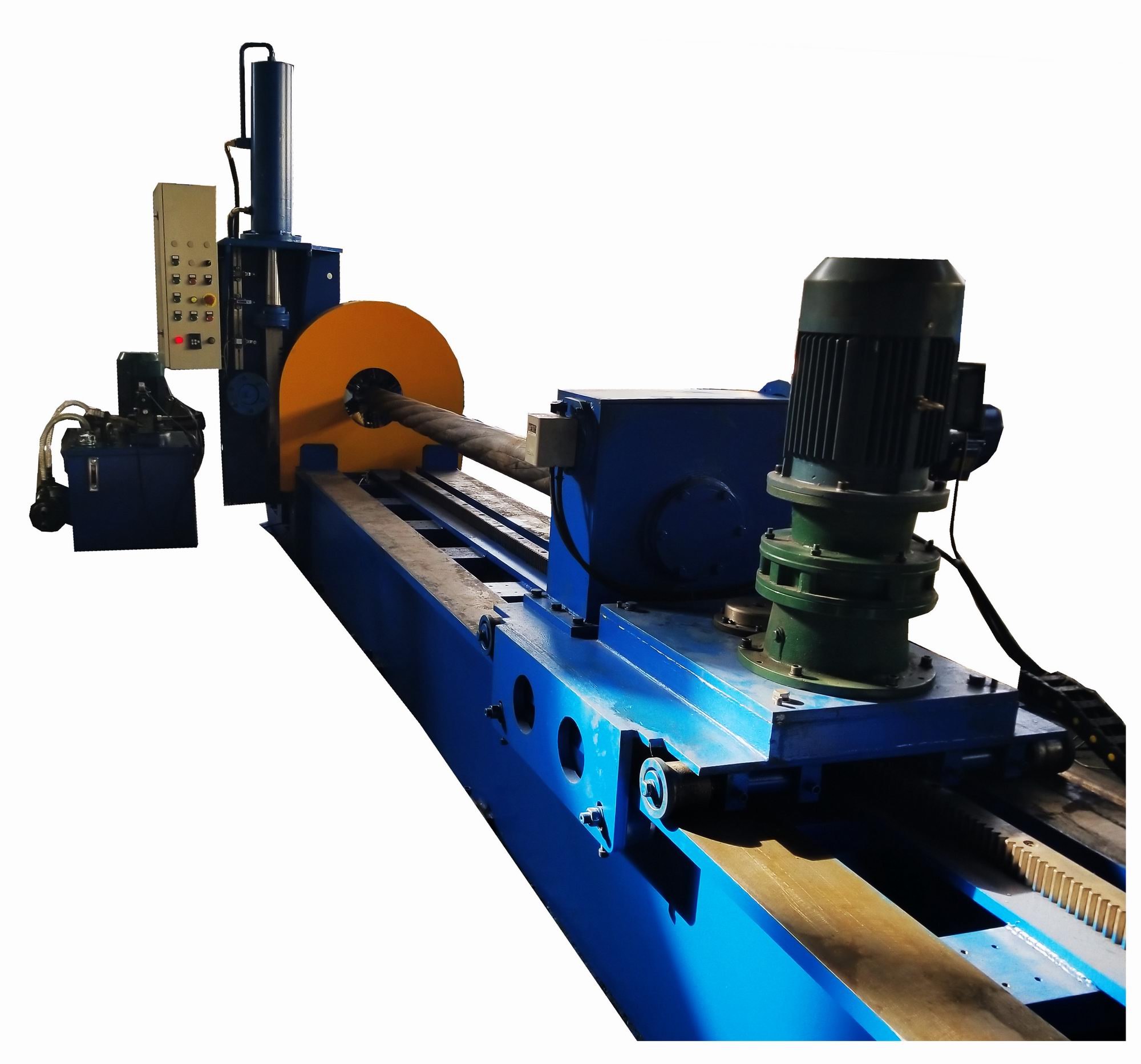

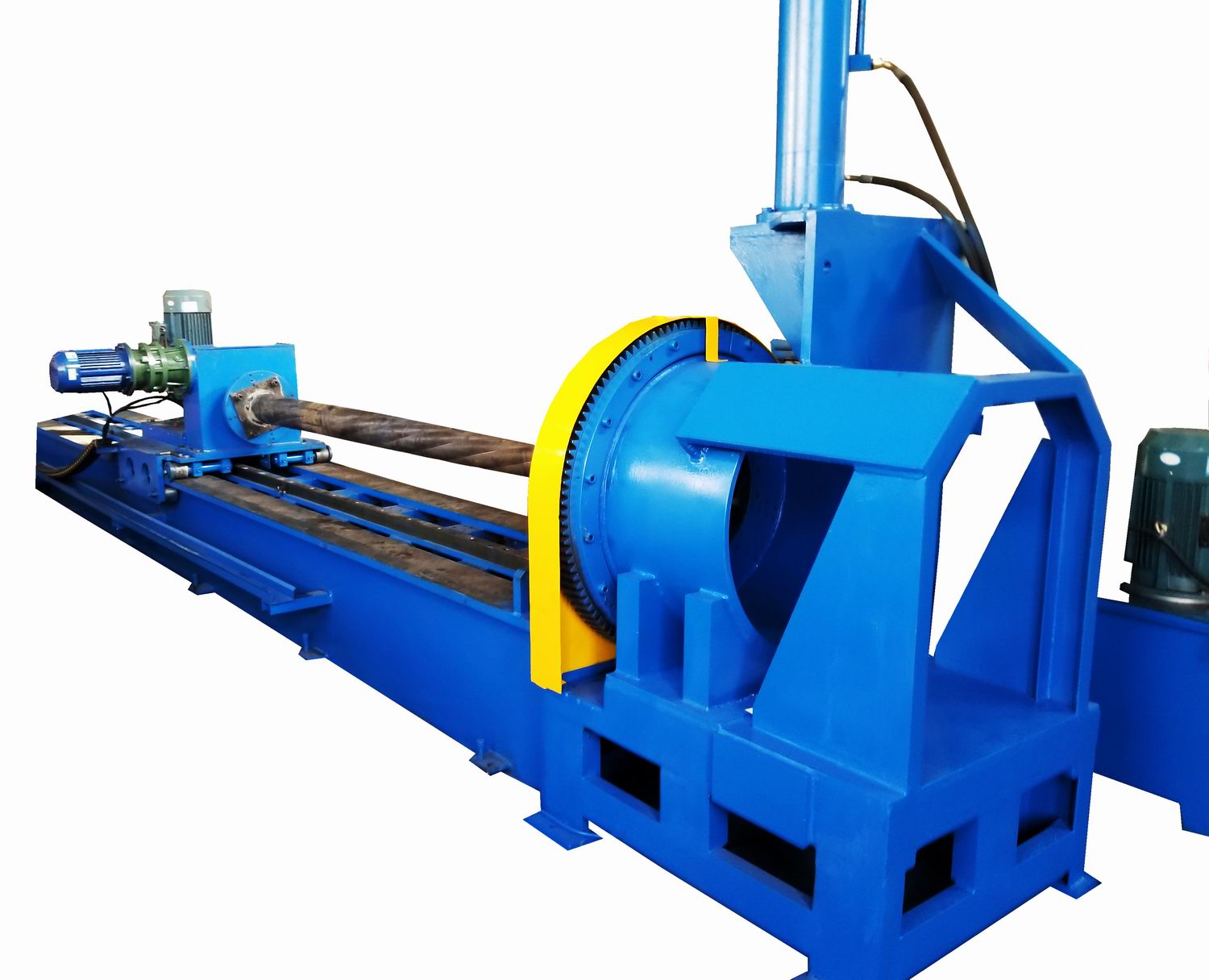

PHOTOS:



PARAMETERS:

 1. Min. pole diameter------------------------------------------------------------------------------------------------60mm

 2. Max. Pole diameter---------------------------------------------------------------------------------------------- 170mm

 3. Max. pole length--------------------------------------------------------------------------------------------------10m

 4. Straight Lines quantity: ---------------------------------------------------------------------------------------- 6lines

 5. Spring (Helical) line quantity:-------------------------------------------------------------------------------- 4

 6. Machine length:-------------------------------------------------------------------------------------------------- 25m

 7. Width:---------------------------------------------------------------------------------------------------------------2.5m

 8. Height:---------------------------------------------------------------------------------------------------------------3m

 9. weight: -------------------------------------------------------------------------------------------------------------about 7 tons

 10. Power:------------------------------------------------------------------------------------------------------------ 18.5kw

 11. working force:--------------------------------------------------------------------------------------------------- 25ton

 12. Speed:-------------------------------------------------------------------------------------- 60 pieces/8 hours , base one pole length 10m

 14. Hydraulic system

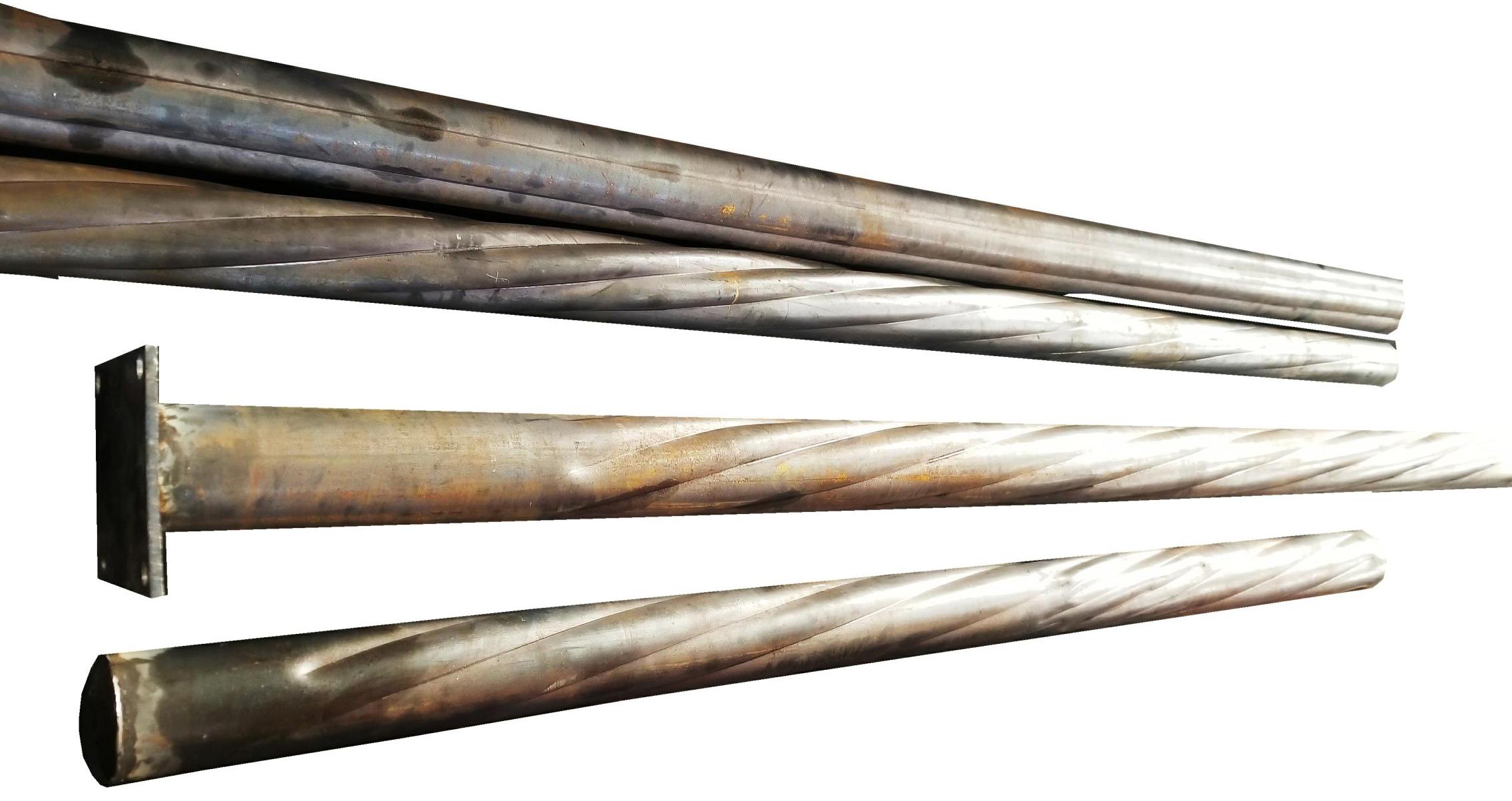

 15. Machine can do straight and helical lines on the light pole out surface.
