STEEL PLATE TAPER CUTTING MACHINE|STEEL PLATE OBLIQUE CUTTING MACHINE|STEEL PLATE TRAPEZIUM CUTTING MACHINE

DESCRIPITIONS:

*This machine is special designed for oblique or straight cutting of long steel plate such as 8meter, 12meter , 16Meter etc for  producing light   poles or high mast poles. *Base on rolling cutting principle, the cutting speed is fast and cutting quality is perfect without deformation comparing with plasma   cutting process or principle. *The operation of this machine is easy and the machine works stable. *The cutting blade uses H13 cutting tooling material with long service life. Also the each cutting blade has two cutting edges. *The machine includes front feeding table, feeding dolly, main cutting or slitting machine, output table, finished steel plate stock   device (optional), auto unloading device (optional) etc.

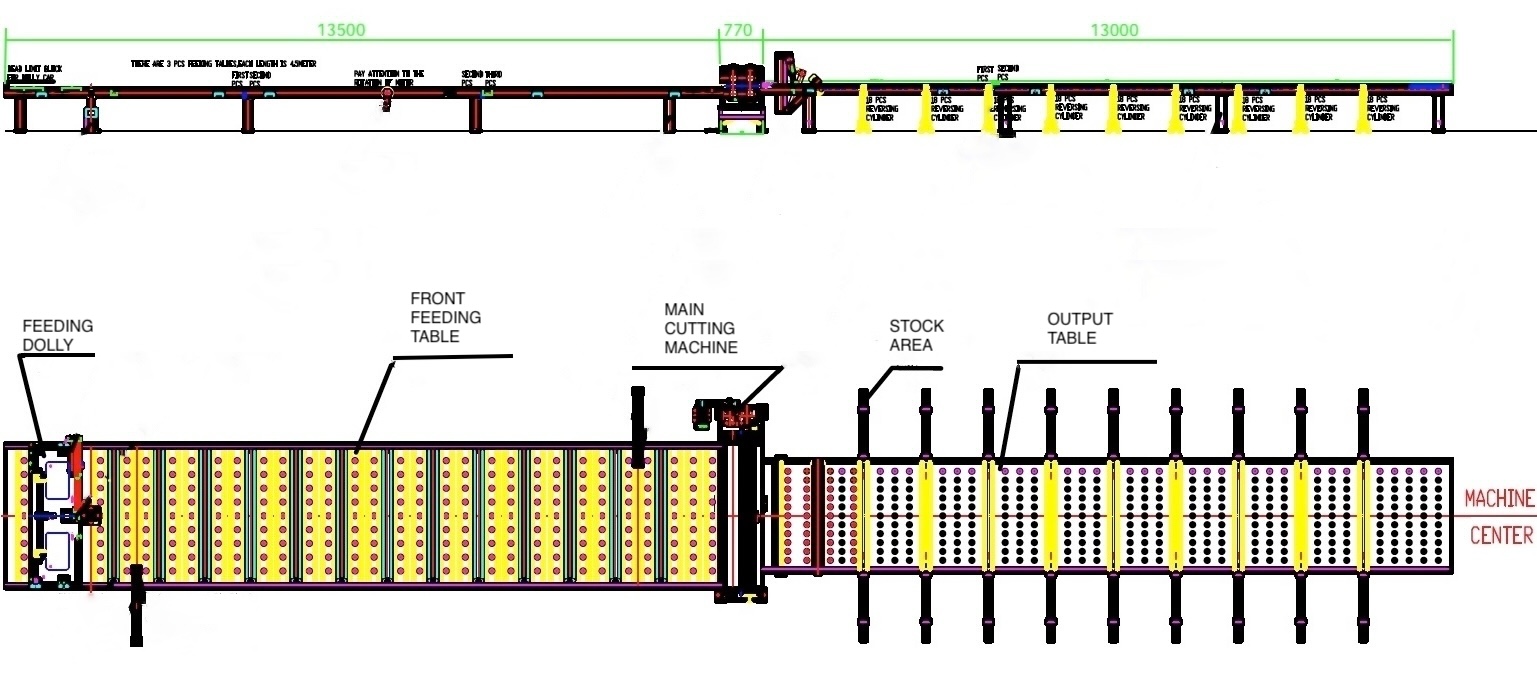

STRUCTURE OF STEEL PLATE OBLIQUE CUTTING MACHINE:

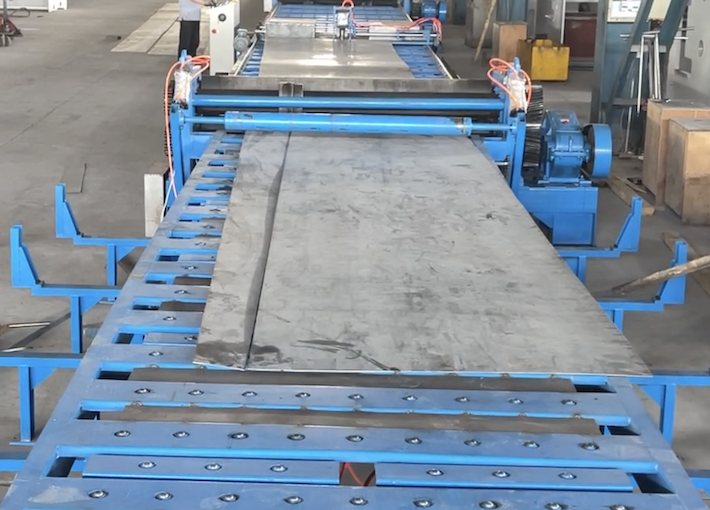

STEEL PLATE OBLIQUE CUTTING PROCESS:

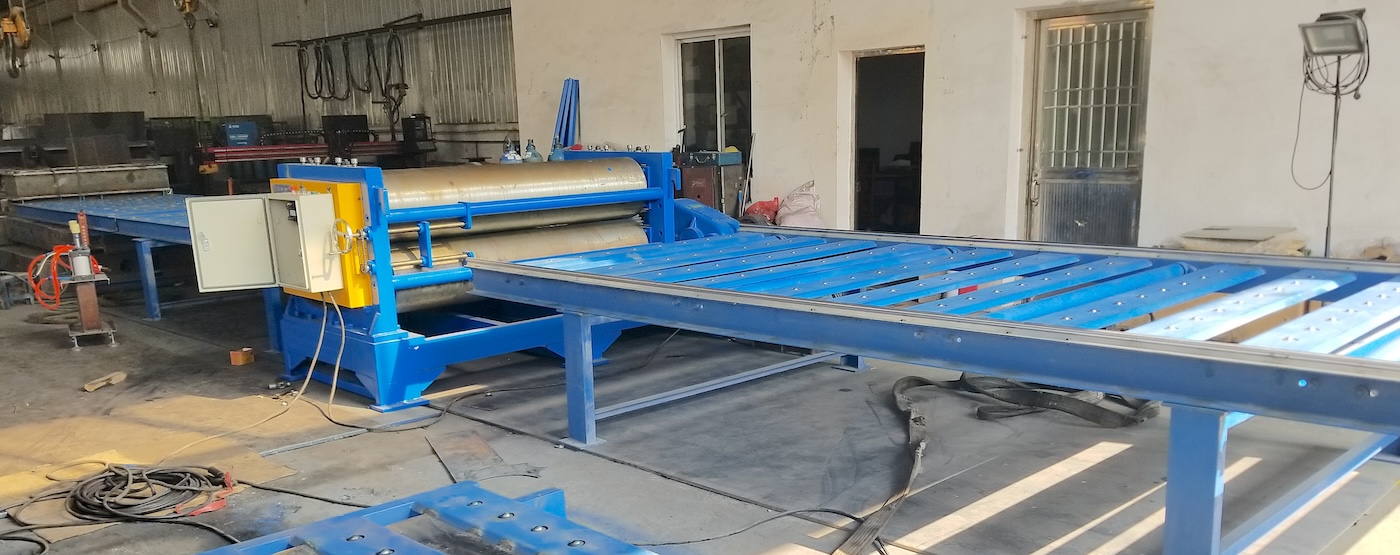

STEEL PLATE TAPER CUTTING MACHINE:ST-6X1800 MAX CUTTING THICKNESS:6MM MAX INNER WIDTH OF SLITTING UNIT:1800MM MAX CUTTING LENGTH:14M

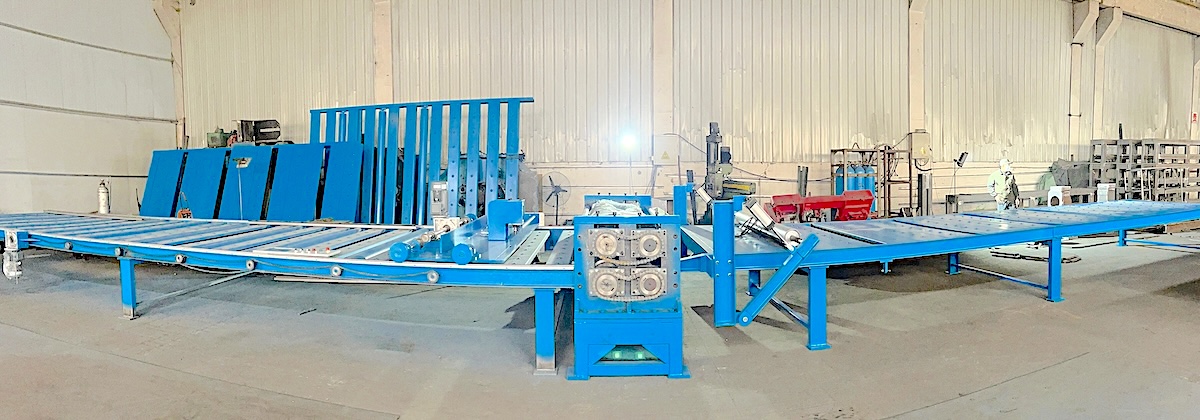

STEEL PLATE OBLIQUE CUTTING MACHINE:8X2000 MAX CUTTING THICKNESS:8MM MAX INNDER WIDTH OF MAIN CUTTING MACHINE:2000MM MAX CUTTING LENGTH:12M

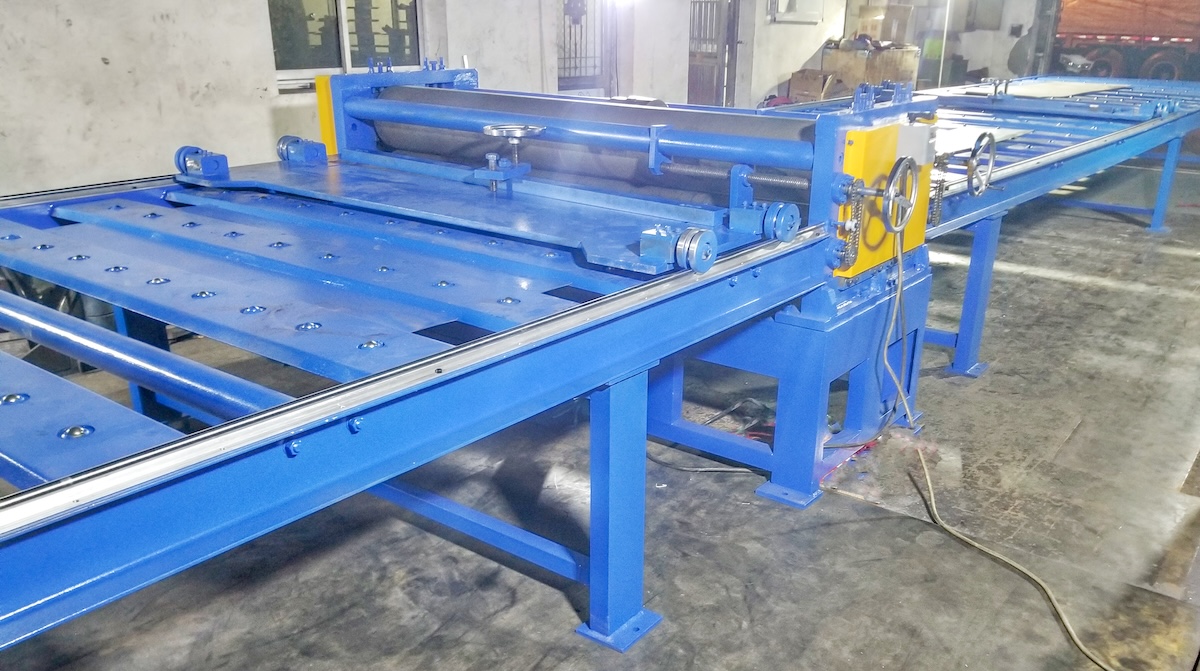

STEEL PLATE TAPER CUTTING MACHINE:12X2000 MAX CUTTING THICKNESS:12MM MAX INNER WIDTH OF MAIN CUTTING MACHINE:2000MM MAX CUTTING LENGTH:12M

AUTO STEEL PLATE TAPER CUTTING MACHINE:AT-8X2000 MAX CUTTING THICKNESS:8MM MAX INNER WIDTH OF MAIN MACHINE:2000MM MAX CUTTING LENGTH:14M

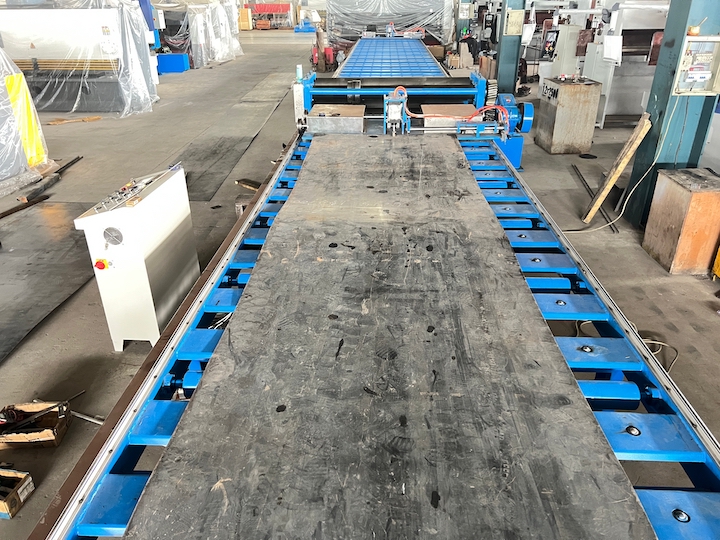

AUTO STEEL PLATE OBLIQUE CUTTING MACHINE:8X2600 MAX CUTTING THICKNESS:8MM MAX INNDER WIDHT OF MAIN CUTTING MACHINE:2600MM MAX CUTTING WIDTH:12M

TECHNICAL FEATURES
NAME	Unit	Value
Max. Cutting Thickness	mm	2.5~10 (CUSTOMERIZED)
Max. inner Width of slitting unit	mm	2600 (CUSTOMERIZED)
Max. Cutting Length	mm	12000 (CUSTOMERIZED)
Slitting speed	m/min.	12
Power of the motor	kw	4,7.5,11
Overall size	28.5x3.5 m
