Light pole bending machine|CNC Tandem press brake

Introduction

LIGHT POLE BENDING MACHINE|TANDEM PRESS BRAKE|HYDRAULIC PRESS BRAKE-BENDING LIGHT POLE COLUMN


          APPLICATION

*LIGHTING POLE BENDING

*HIGH MAST POLE BENDING

*CONIC POLE BENDING

*OCTAGONAL POLE BENDING

*BRIDGE STEEL STRUCTURE BENDING

*LONG METAL SHEET BENDING

                    GOOD PARTS

1.CONTROLLER:DELEM DA53T(OPTIONAL)

2.HYDRAULIC PUMP:SUNNY(USA)

3.HYDRAULIC VALVE:BOSCH(GERMAN)

4.ELECTRIC PARTS:SCHNEIDER(FRANCE)

5.OIL SEAL:NOK (JAPAN)

6.MAIN BEARING:SKF

         MAIN STRUCTURE

*TWO MAIN MACHINES

*FRONT STEEL PLATE SUPPORTER

*WORKING TABLE CROWN

*OCTAGONAL POLE BENDING TOOLING

*CONIC POLE BENDING TOOLING

*SIDE UNLOADING DEVICE

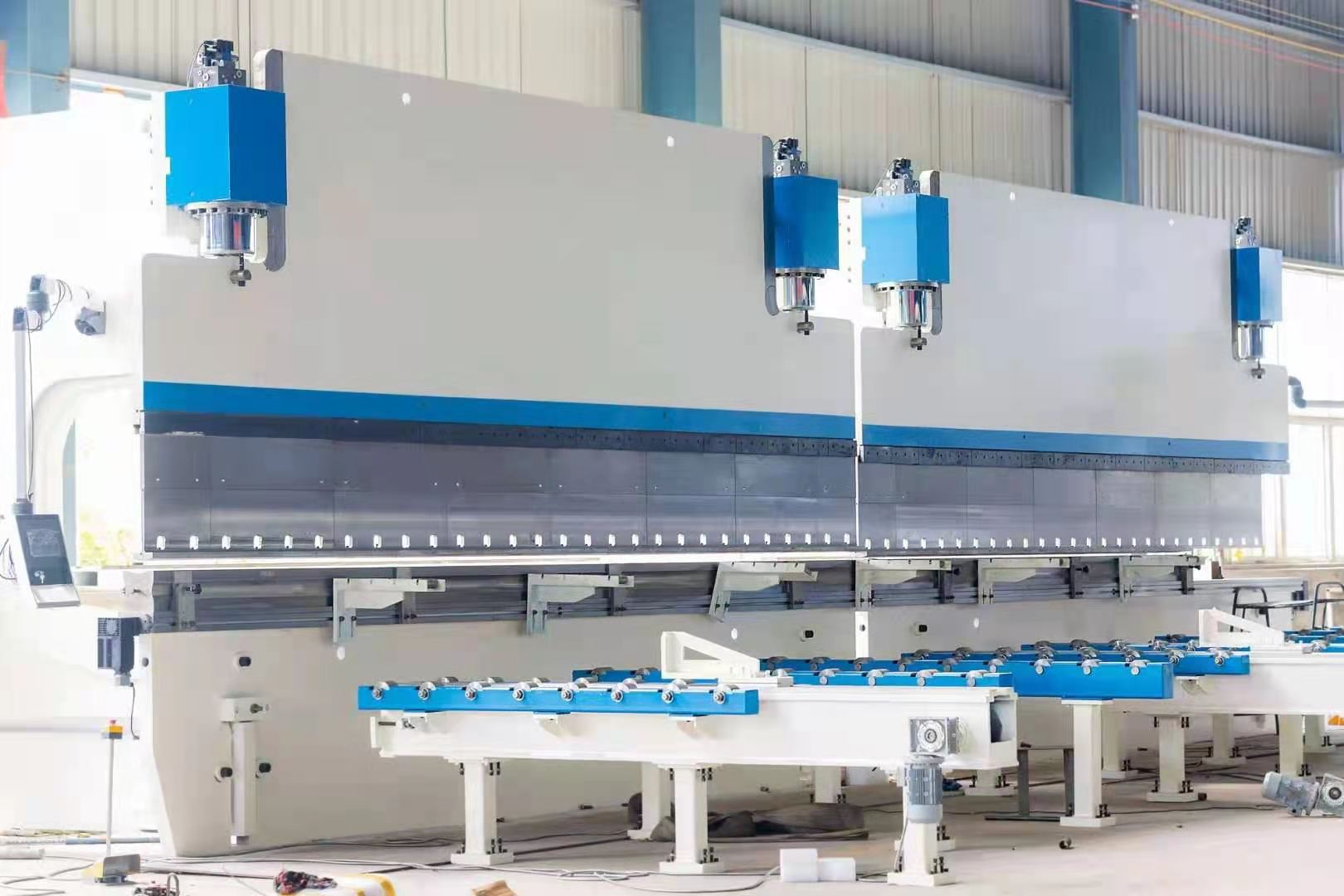

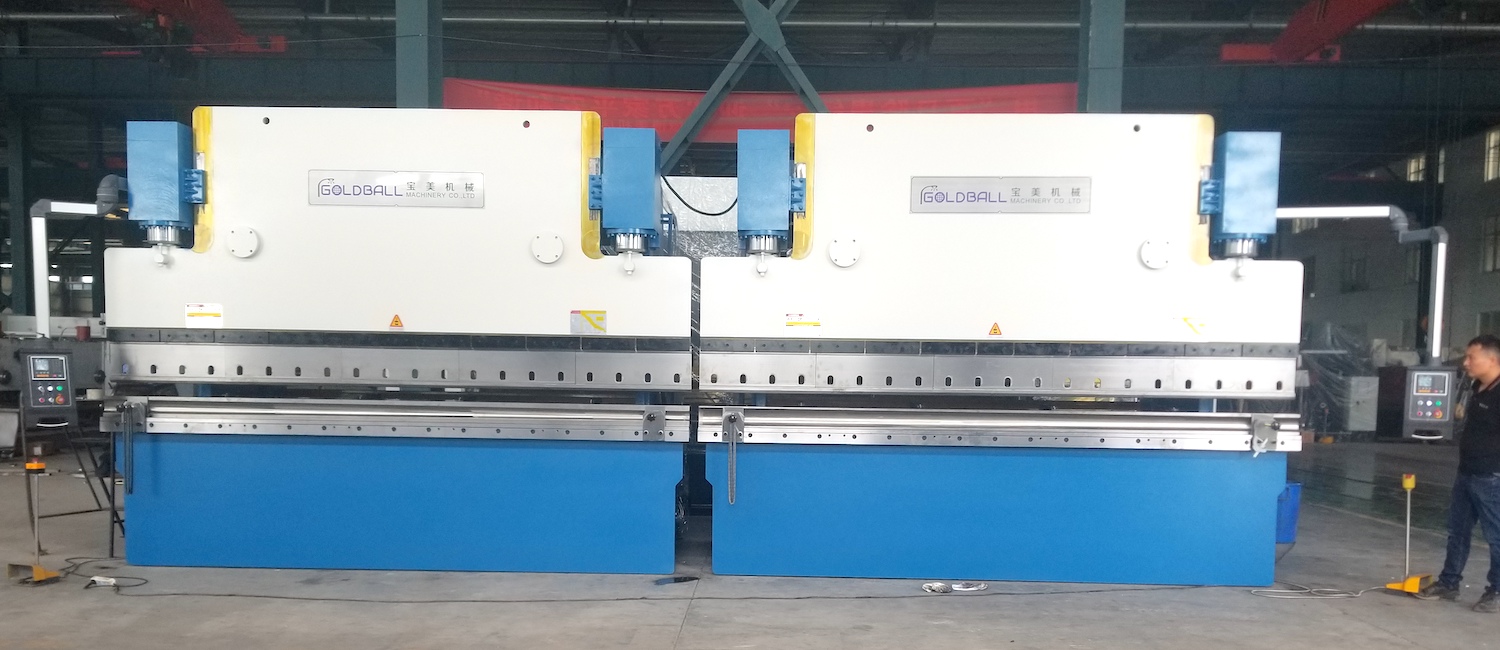

CNC TANDEM HYDRAULIC PRESS BRAKE:

*MODEL:2-WE67K-400/6000

*BENDING PRESSURE:2X400T

*MAX BENDING LENGTH;12M

*MAX BENDING THICKNESS:10MM

CNC CONTROLLER:DA53T

AXIS CONTROLLED:2+1AXIS

NC TANDEM HYDRAULIC PRESS BAKE

*MODEL:2-WC67K-250T/4000+6000

*BENDING PRESSURE:2X250T

*BENDING LENGTH:10M

*THROAT DEPTH:500M

*MAX.DIAMETER OF POLE:320MM

*MAX. OCTAGONAL POLE THICKNESS:6MM

*MAX.CONIC POLE THICKNESS:4MM

*NC CONTROLLER:E21

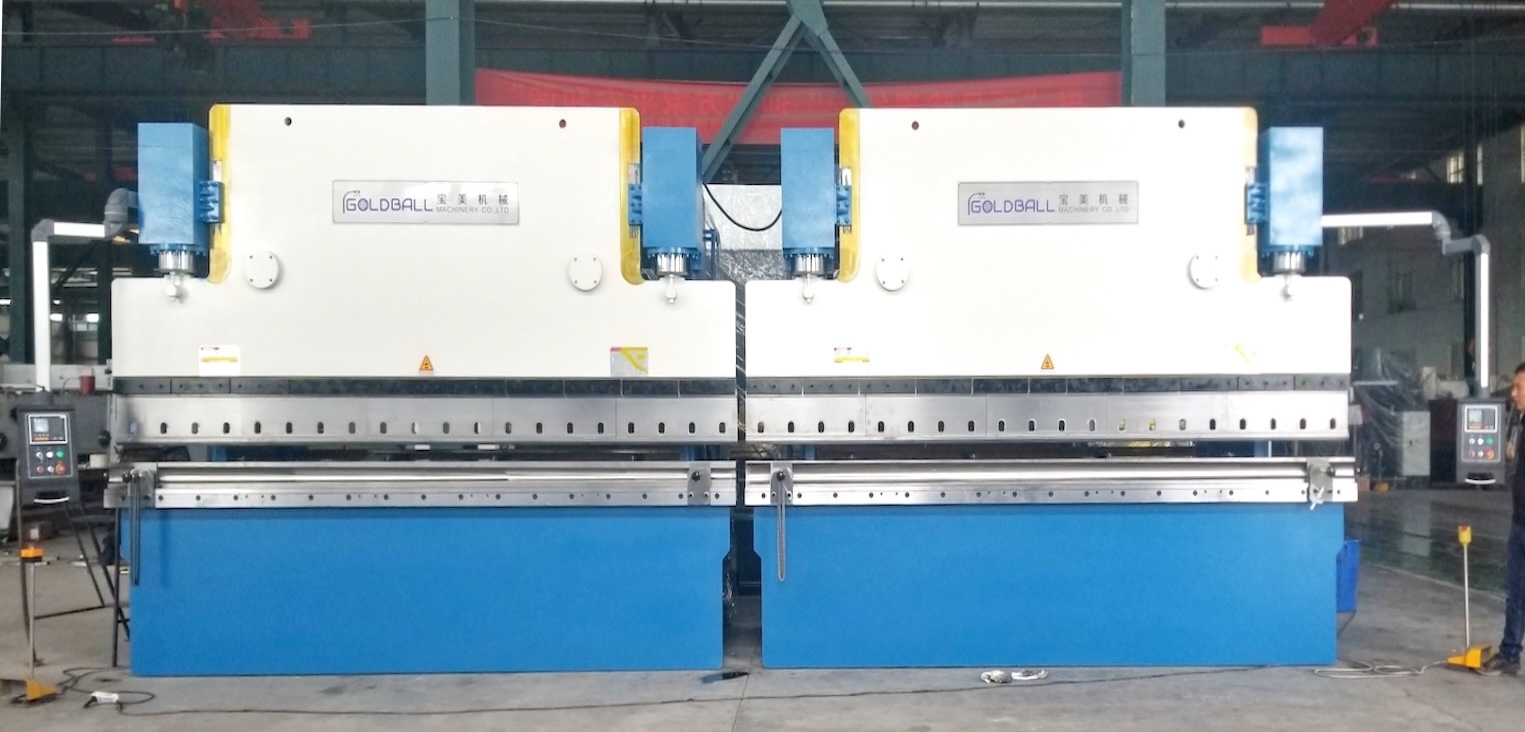

NC TANDEM HYDRAULIC PRESS BRAKE

*MODEL:2-WC67K-250T/4000

*BENDING PRESSURE:2X250TON

*BENDING LENGTH:8M

*MAX DIAMETER OF POLE:250MM

*MAX THICKNESS OF OCTAGONAL POLE:6MM

*MAX THICKNESS OF CONIC POLE:4MM

*NC CONROLLER:E21

CNC TANDEM HYDRAULIC PRESS BRAKE:

*MODEL:2-WE67K-1000T/7000

*BENDING PRESSURE:2X1000TON

*MAX BENDING LENGTH:14M

*MAX DIAMETER OF POLE:850MM

*MAX THICKNESS OF OCTAGONAL POLE:14MM

*MAX THICKNESS OF CONIC POLE:10MM

*CNC CONTROLLER:DA66T

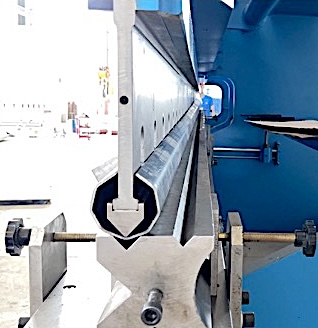

OCTAGONAL POLE BENDING TOOLING




CONIC POLE BENDING TOOLING

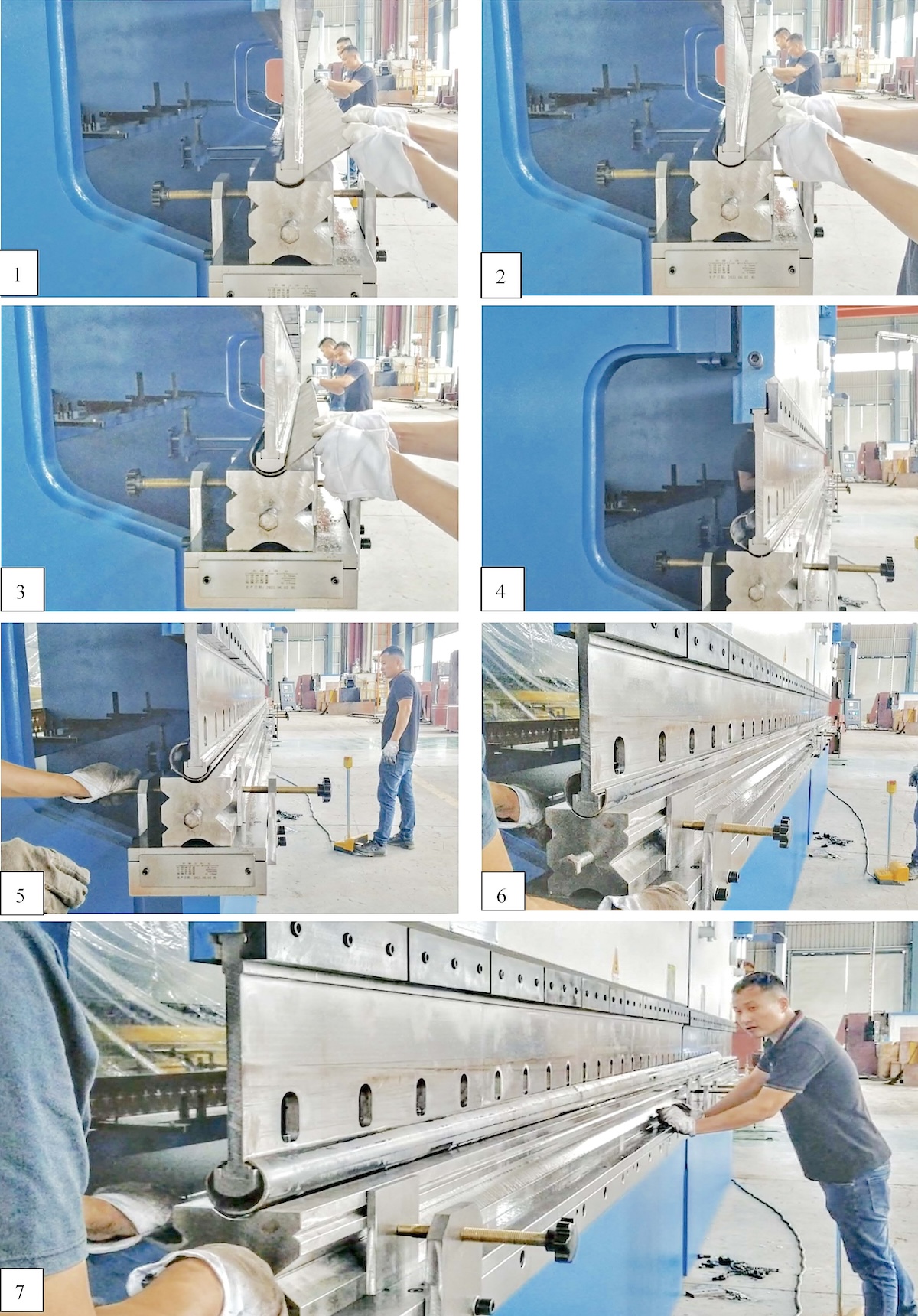

BENDING PROCEDURES

FINISHED BENDING POLES

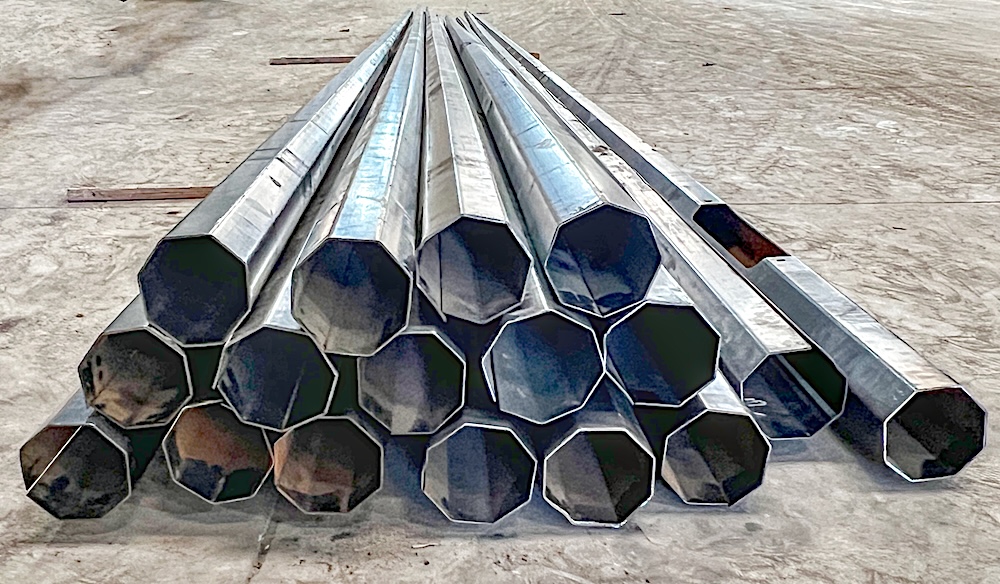

FINISHED OCTAGONAL LIGHTING POLE

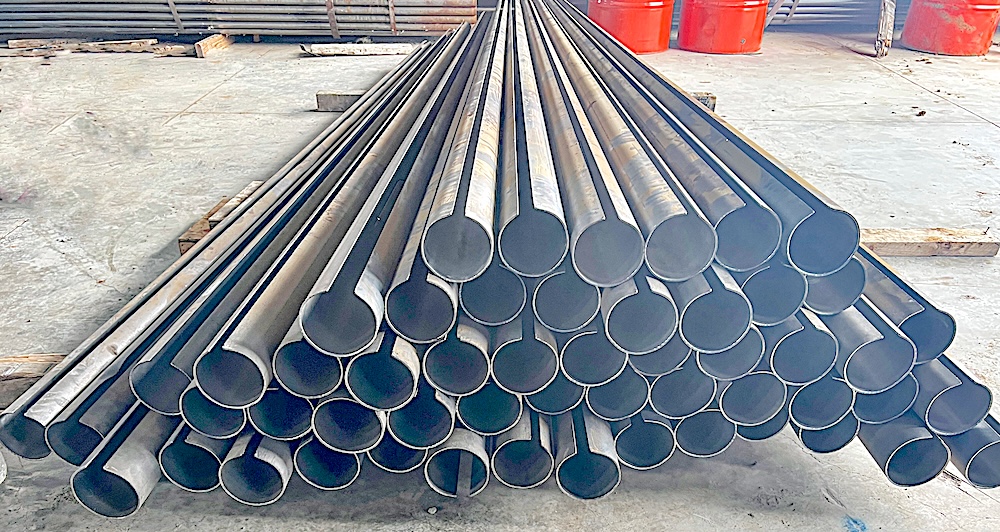

FINISHED CONIC LIGHT POLE

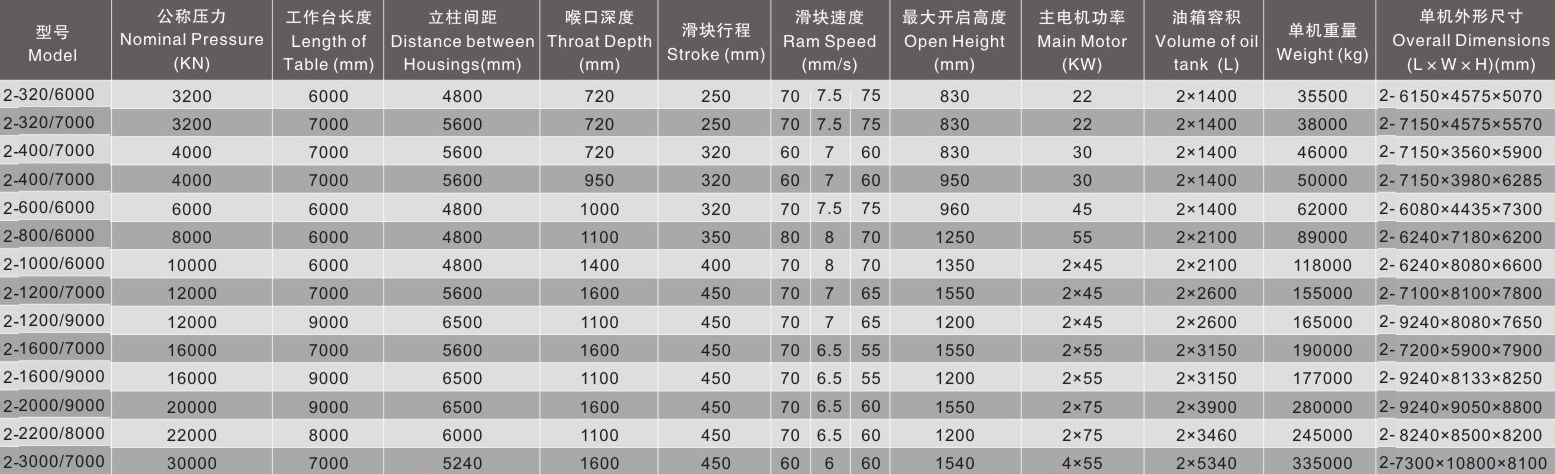

PARAMETERS

REFERENCE VIDEO:
